chip sunplus1509ct/GX6705

1. Fully DVB-T/DVB-T2/ DVB-C/ MPEG-2/MPEG-4/H.264 compliant

2. CVBS/RGB/YPbPr/Scart output supported,USB 2.0 port PVR, multi-media player

3. Electronic program guide (EPG) , VBI Teletext,Supports up to 64 satellites

4. Auto/Manual Program search, Multi-language supported

5. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback,OTA software upgrade

6. Transmission mode: LDPC/BCH 8PSK/QPSK,QPSK

7. Support up to 5000 channels

8. Support up full HD 1080P

9.Support  Youtube.tiktok.wetv.megogo .iptv

DVBT2 Specification
Input Inpedance 75Ohms unbalanced
Signal Input Level -65 ~ -25dBm
47-862 MHz
Demodulation
Demodulator QPSK/8PSK
FEC Modes Rate 1/2,2/3,3/4,5/6,7/8,8/9,9/10
System Resources

Video Decoder
Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
Transport stream ISO/IEC 13818-1
Video decoding “MPEG-2 SD/HD (MP@ML and MP@HL), MPEG-4 H.264/AVC SD/HD
JPEG,BMP,PNG, Motion JPEG
AVI, VOB, MOV, MKV
Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Aspect ratio 4:3, 16:9，Auto
Audio Decoder
Standard MPEG-1 Layer I & II, MPEG-2 Layer II, AAC, MP3, HE-AAC,AC-3(optional), E-AC-3(optional)
Sample rate 32, 44.1, 48
Subtitles & Teletext
Subtitle DVB Subtitle

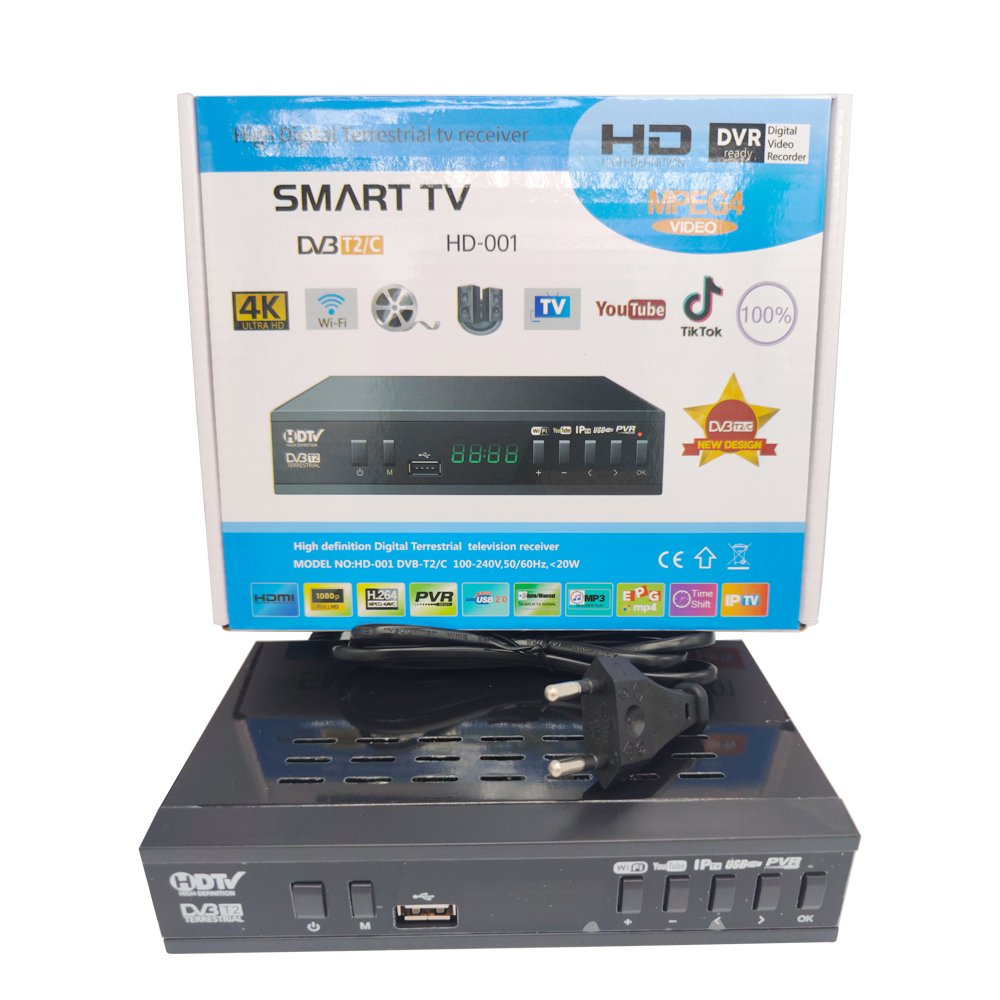

Front Panel
bi-colored LED Support 4/8 Led Display
USB /Front Panel Buttons CH+/CH-/POWER

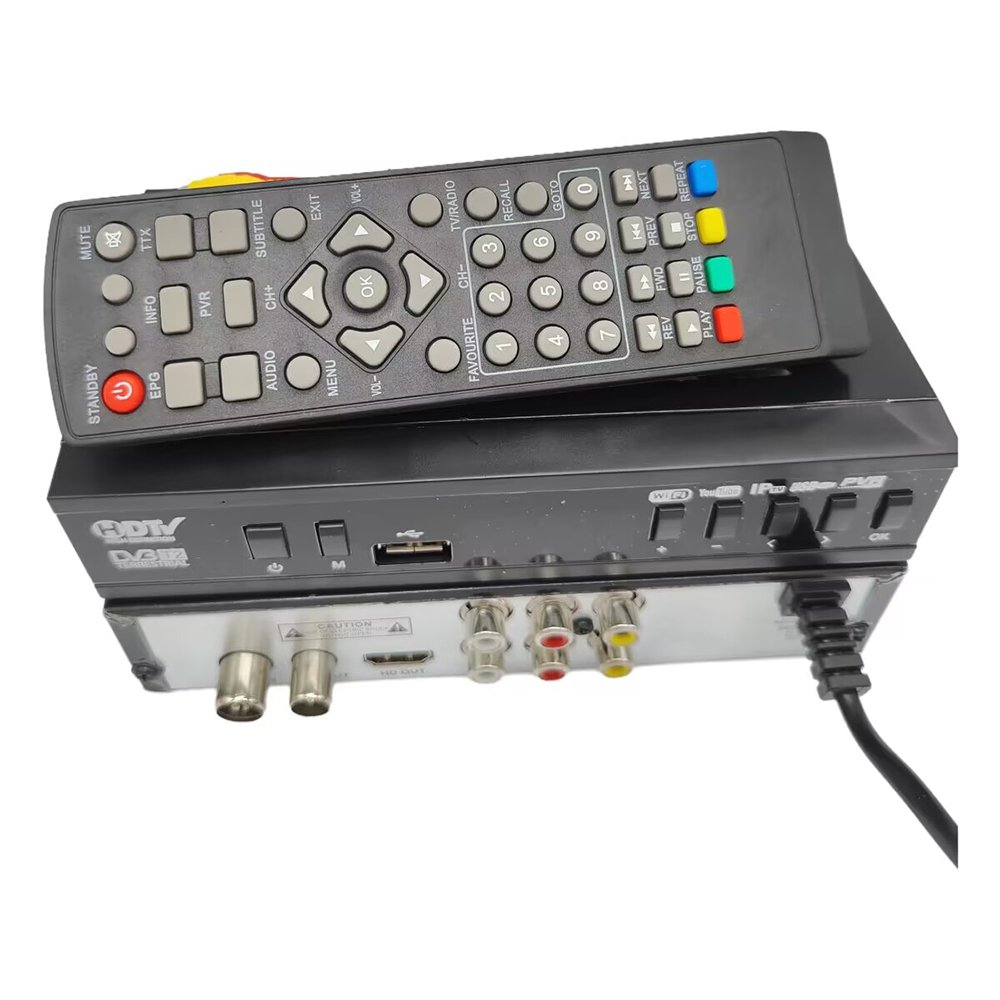

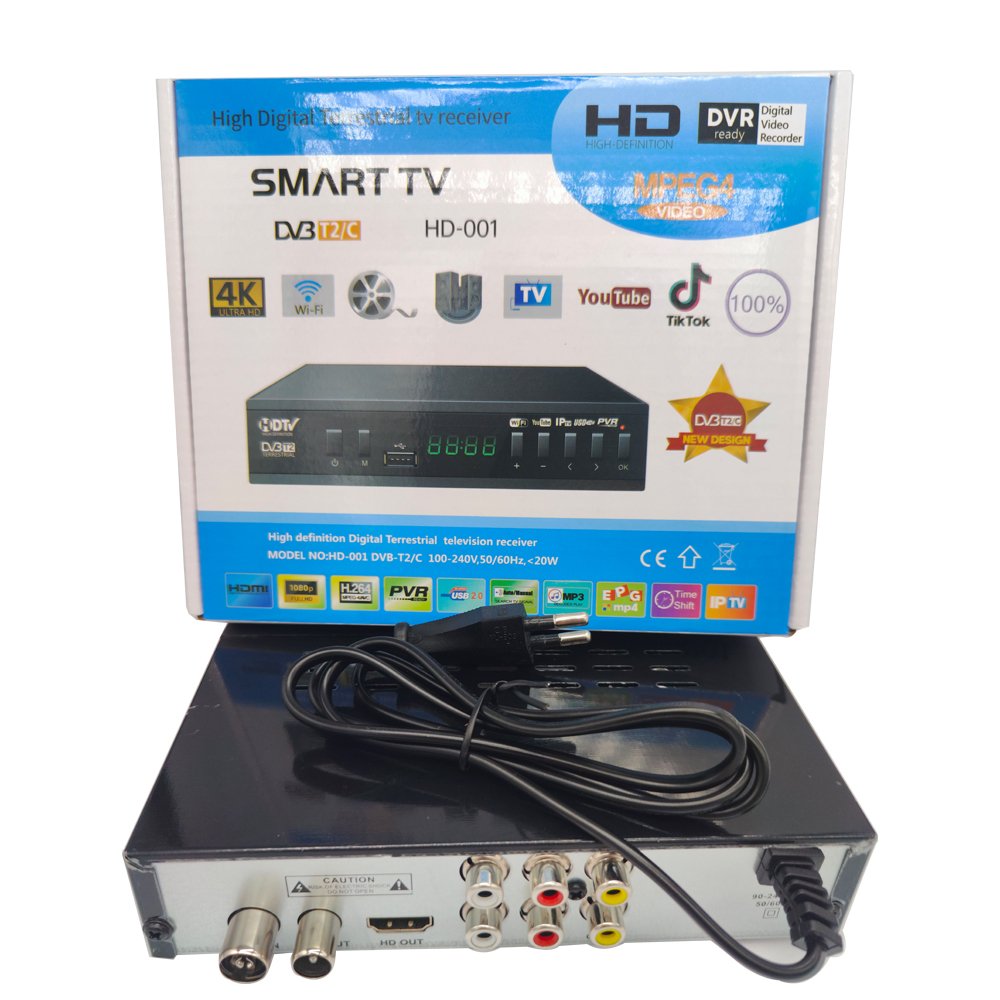

Rear Panel
Digital HDTV video output with HDCP.
LNB Input IEC169-2 Female
OPTICAL&COAXIAL No
RS232 Optional
USB 2pcs
CVBS & Audio R/L RCA(3 ports)
Accessories
Remote control unit IR 38kHz NEC
User Manual 1 in English
Cable 1(Optional)
Power
DC INPUT /AC input range 100V-240V 50Hz/60Hz
Power consumption Max 18W
Physical
Operating Temperature 0 ~ 45 °C
