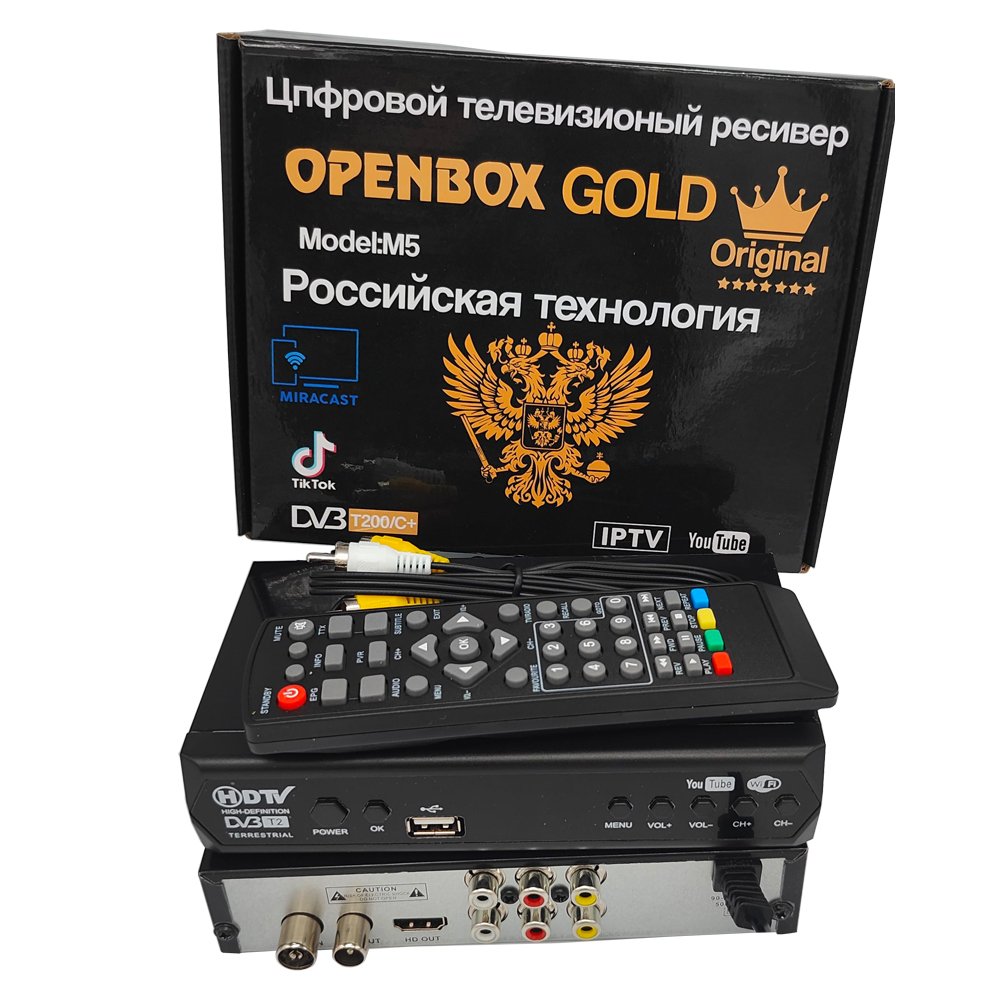

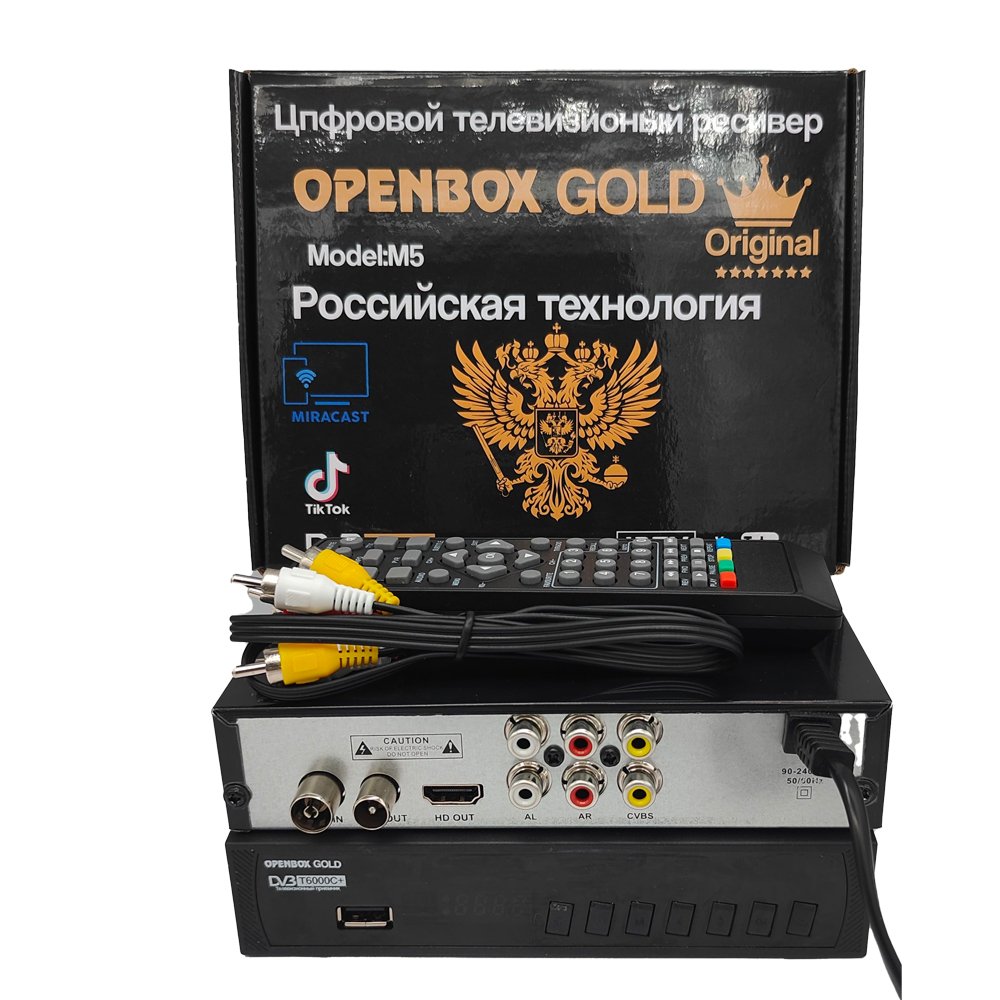

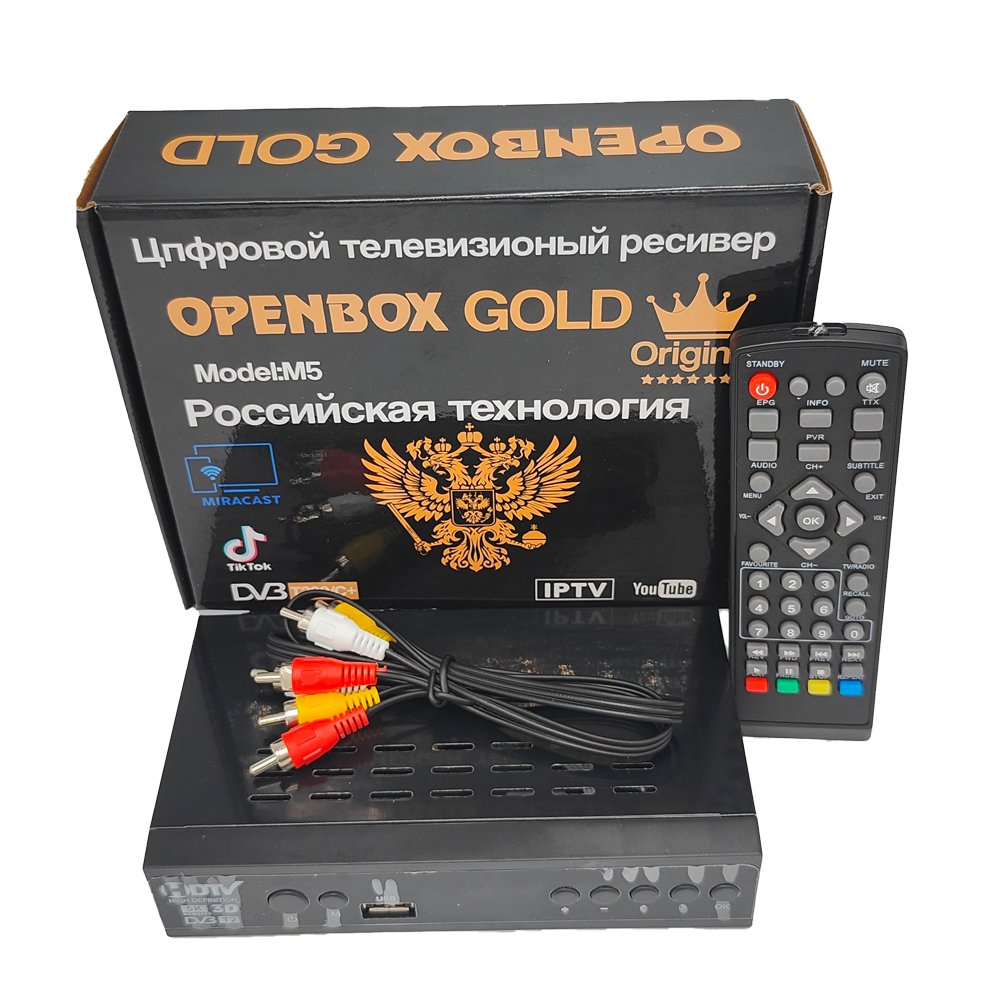

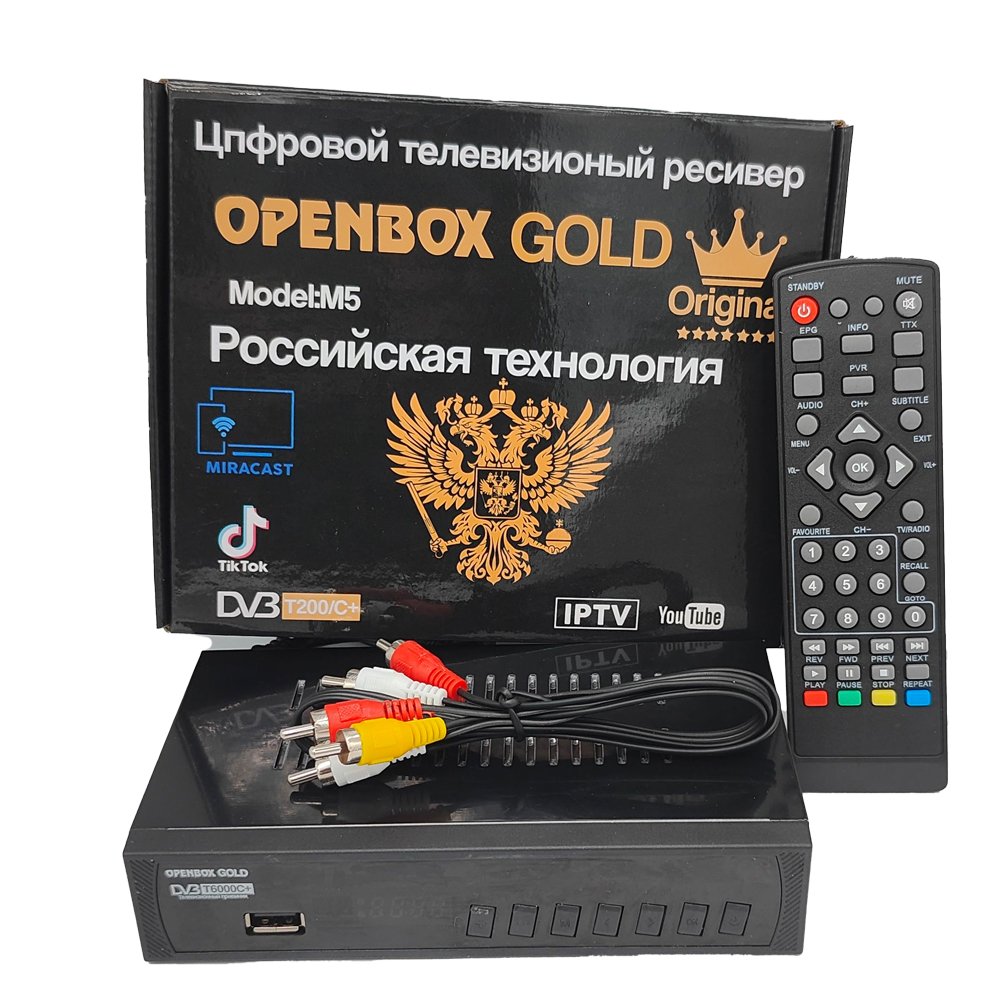

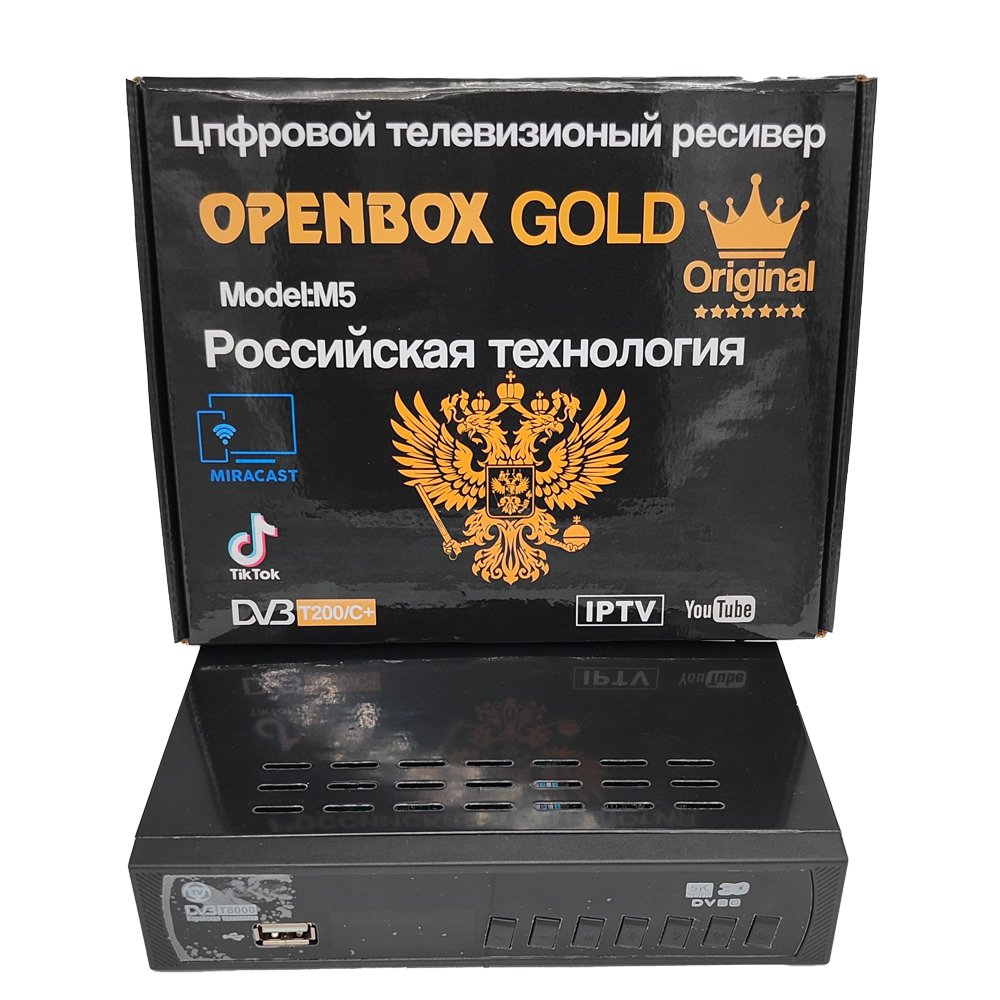

DVB-T2 H264 BOX HD
Model Type Mainchip: SUNPLUS1509CT/GX6705
Function：1. Fully DVB-T/DVB-T2/MPEG-2/MPEG-4/H.264 compliant2. CVBS/RGB/YPbPr/Scart output supported,USB 2.0 port PVR, multi-media player
3. Electronic program guide (EPG) , VBI Teletext,Supports up to 64 satellites
4. Auto/Manual Program search, Multi-language supported
5. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback,OTA software upgrade
6. Transmission mode: LDPC/BCH 8PSK/QPSK,  QPSK
7. Support up to 5000 channels
8. Support up full HD 1080PDVBT2 Specification
Input Inpedance 75Ohms unbalanced
Signal Input Level -65 ~ -25dBm
47-862 MHz
Demodulation
Demodulator QPSK/8PSK
FEC Modes Rate 1/2,2/3,3/4,5/6,7/8,8/9,9/10
System Resources

Video Decoder
Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
Transport stream ISO/IEC 13818-1
Video decoding “MPEG-2 SD/HD (MP@ML and MP@HL), MPEG-4 H.264/AVC SD/HD
JPEG,BMP,PNG, Motion JPEG
AVI, VOB, MOV, MKV
Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Aspect ratio 4:3, 16:9，Auto

Audio Decoder
Standard MPEG-1 Layer I & II, MPEG-2 Layer II, AAC, MP3, HE-AAC,AC-3(optional), E-AC-3(optional)
Sample rate 32, 44.1, 48
Subtitles & Teletext
Subtitle DVB Subtitle

Front Panel
bi-colored LED Support 4/8 Led Display
USB /Front Panel Buttons CH+/CH-/POWER
Rear Panel
Digital HDTV video output with HDCP.
LNB Input IEC169-2 Female
OPTICAL&COAXIAL No
