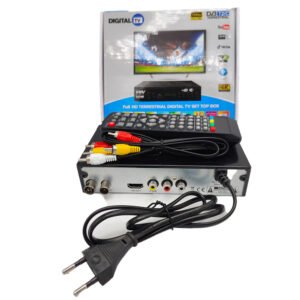

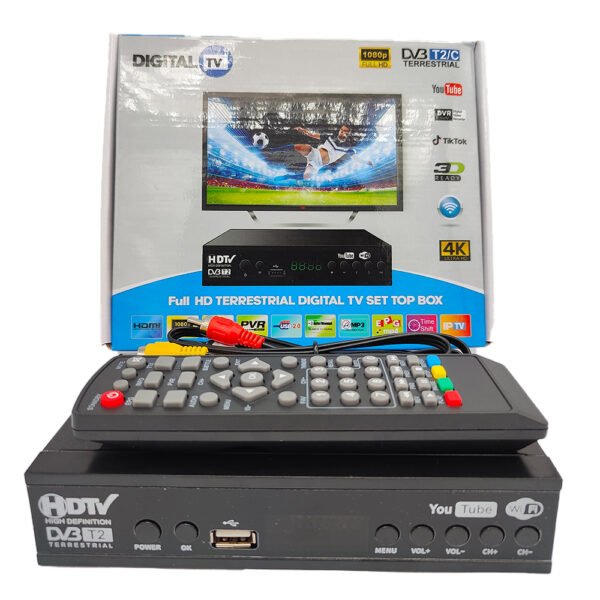

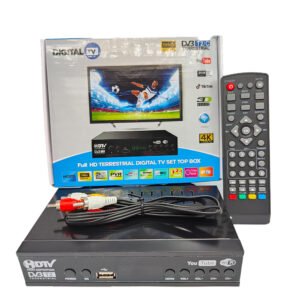

MPEG4 DVB-T2 DVB-C hdtv 168MM DIGITAL TV SET TOP BOX Support pvr USB2.0 tuner

DVB-T2 H264 BOX HD

Model Type Mainchip: SUNPLUS1509CT/GX6705
Function：

1. Fully DVB-T/DVB-T2/MPEG-2/MPEG-4/H.264 compliant
2. CVBS/RGB/YPbPr/Scart output supported,USB 2.0 port PVR, multi-media player
3. Electronic program guide (EPG) , VBI Teletext,Supports up to 64 satellites
4. Auto/Manual Program search, Multi-language supported
5. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback,OTA software upgrade

6. Support up to 5000 channels
7. Support up full HD 1080P

DVBT2 Specification
Input Inpedance 75Ohms unbalanced
Signal Input Level -65 ~ -25dBm

47-862 MHz
Demodulation
Demodulator QPSK/8PSK
FEC Modes Rate 1/2,2/3,3/4,5/6,7/8,8/9,9/10
System Resources

Video Decoder
Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
Transport stream ISO/IEC 13818-1
Video decoding “MPEG-2 SD/HD (MP@ML and MP@HL), MPEG-4 H.264/AVC SD/HD

JPEG,BMP,PNG, Motion JPEG
AVI, VOB, MOV, MKV
Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Aspect ratio 4:3, 16:9，Auto
Audio Decoder
Standard MPEG-1 Layer I & II, MPEG-2 Layer II, AAC, MP3, HE-AAC,AC-3(optional), E-AC-3(optional)
Sample rate 32, 44.1, 48
Subtitles & Teletext
Subtitle DVB Subtitle
Front Panel
bi-colored LED Support 4/8 Led Display
USB /Front Panel Buttons CH+/CH-/POWER
Rear Panel
Digital HDTV video output with HDCP.
LNB Input IEC169-2 Female
OPTICAL&COAXIAL No
RS232 Optional
USB 2pcs
CVBS & Audio R/L RCA(3 ports)
Accessories
Remote control unit IR 38kHz NEC
User Manual 1 in English
Cable 1(Optional)
Power
DC INPUT /AC input range 100V-240V 50Hz/60Hz
Power consumption Max 18W
Physical
Operating Temperature 0 ~ 45 °C
